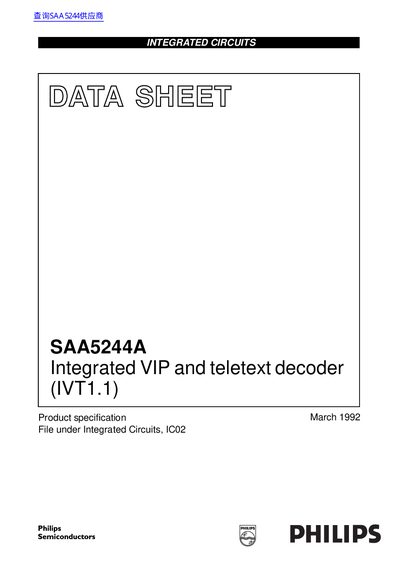

PHILIPS SAA5244A Integrated VIP teletext decoder (IVT1.1) handbook

This is a product specification for SAA5244A integrated VIP and teletext decoder. The decoder is contained within a single-chip package and can decode 625-line based World System Teletext transmissions.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 32
File format: PDF
File size: 195 KB
Published: 04 July, 2012
Updated: 30 September, 2023
Model: IVT1
MD5 checksum: 35CED6945F11D6243D5336CBFA31F7E4
PDF: PHILIPS SAA5244A Integrated VIP teletext decoder (IVT1.1) handbook PDF

About this manual

The document is a product specification datasheet for the Philips SAA5244A Integrated VIP and Teletext Decoder (IVT1.1). This device decodes 625-line based World System Teletext transmissions using a reduced function version of the SAA5246 architecture.

What's inside

Features
Ordering Information
Description
Quick Reference Data
Block Diagram
Pinning
Limiting Values
Failure Rate
Soldering

Specifications

Package Type	40-pin DIL or 44-pin QFP
Supply Voltage	+5 V
Operating Temperature Range	-20 to 70 °C

Frequently asked questions

What is the maximum permissible temperature for dipping or wave soldering?

The solder must not be in contact with the joint for more than 5 seconds at this temperature.

What is the maximum duration a soldering iron bit between 300 and 400 °C can remain in contact with the lead?

Contact may be up to 5 seconds if the bit temperature is between these values.

What are the typical reflow temperatures for QFP packages?

Typical reflow temperatures range from 215 to 250 °C.
