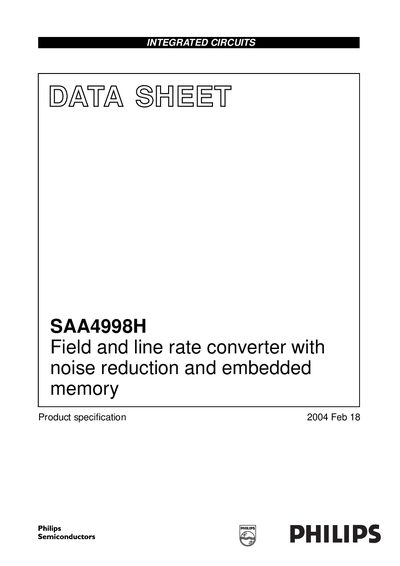

This document is the datasheet for PHILIPS SAA4998H. It introduces the features and characteristics of the product, including motion compensated frame rate upconversion, embedded memory, limiting values, thermal characteristics, and package outline.
The Philips SAA4998H is a high-performance integrated circuit designed as a field and line rate converter with noise reduction and embedded memory. It supports motion-compensated frame rate upconversion for various film and video standards, including conversion from 50 Hz interlaced to 60 Hz progressive or 75 Hz interlaced formats. The device features a patented Edge Dependent De-Interlacing (EDDI) method and includes an embedded 2 x 2.9-Mbit DRAM to reduce part count and package size.
| Core supply voltage | 1.65 to 1.95 V |
|---|---|
| Analog supply voltage | 3.0 to 3.6 V |
| Operating clock frequency | 32 to 33.3 MHz |
| Ambient temperature | 0 to 70 °C |
| Package type | QFP100 |
| Embedded memory | 2 x 2.9-Mbit DRAM |
It is a field and line rate converter with noise reduction and embedded memory.
Yes, it supports 50 Hz interlaced to 60 Hz progressive mode.
The package is a QFP100 with a body size of 14 x 20 x 2.8 mm.
