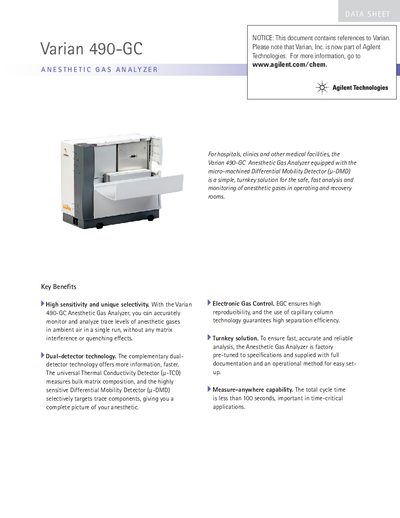

The Varian 490-GC Anesthetic Gas Analyzer offers high sensitivity and unique selectivity. It accurately monitors and analyzes trace levels of anesthetic gases in ambient air in a single run, without any matrix interference or quenching effects. The dual-detector technology provides more information, faster. The analyzer is equipped with the micro-machined Differential Mobility Detector (μ-DMD), making it a simple, turnkey solution for the safe, fast analysis and monitoring of anesthetic gases in operating and recovery rooms in hospitals, clinics, and other medical facilities.
The Varian 490-GC Anesthetic Gas Analyzer is a turnkey solution designed for the safe and fast analysis of anesthetic gases in operating and recovery rooms. It utilizes complementary dual-detector technology, combining a universal Thermal Conductivity Detector (TCD) to measure bulk matrix composition and a highly sensitive Differential Mobility Detector (DMD) to selectively target trace components.
| Total cycle time | less than 100 seconds |
|---|---|
| Sample temperature range | 0 °C to 110 °C |
| Sample pressure range | ambient up to 1 bar |
| Sample inlet type | Heated sample inlet 1/16 in. Valco |
| Minimum Detectability (u-DMD) | < 100 ppb |
| Repeatability | Better than 3% relative standard deviation |
It analyzes halogenated components such as halothane, enflurane, isoflurane, desflurane, and sevoflurane.
Yes, it is factory pre-tuned to specifications and supplied with full documentation and an operational method.
