M-Audio Delta 44 Digital Recording Interface User Manual

This document describes the features and specifications of the Delta 44 digital recording device, as well as the installation steps for hardware and driver software.

Brand: M-Audio
Document type: User Manual
Language: English
Pages: 39
File format: PDF
File size: 1.4 MB
Published: 03 July, 2012
Updated: 28 September, 2023
MD5 checksum: 3F9BBE78C326AF782B80ADFDC4287471
PDF: M-Audio Delta 44 Digital Recording Interface User Manual PDF

About this manual

The M-Audio Delta 44 is a 4-input, 4-output digital recording interface featuring 24-bit data width and sampling rates up to 96kHz. It includes a PCI host adapter card with an external break-out box containing analog I/O jacks for balanced or unbalanced connections.

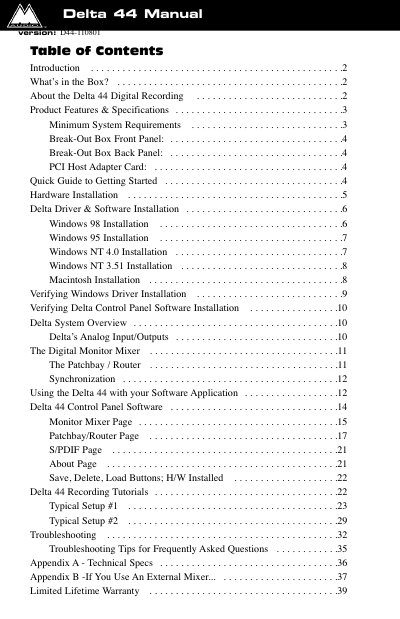

What's inside

Introduction
What's in the Box?
Product Features & Specifications
Minimum System Requirements
Hardware Installation
Delta Driver & Software Installation
Windows 98/95/NT Installation
Macintosh Installation
Delta System Overview
Troubleshooting

Specifications

Data Width	24-bit
Sampling Rate	8kHz to 96kHz
Analog I/O Configuration	+4dBu, Consumer (-4dBV), -10dBV
Analog Dynamic Range	Exceeding 103dB

Frequently asked questions

What is the maximum sampling rate supported by the Delta 44?

The interface supports any sampling rate from 8kHz to 96kHz.

What are the minimum RAM requirements for 96kHz operation?

You need 128 MB of PC100 RAM for 96kHz operation.

What type of connector is used for the host cable?

The host cable uses a 15-pin D-sub connector.
