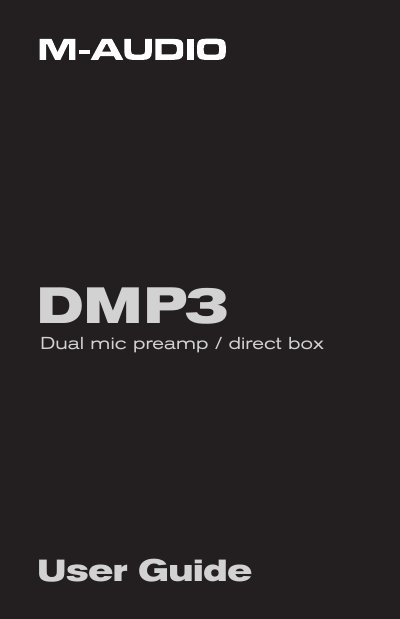

The DMP3 User Guide is a guide for using the M-Audio DMP3 Microphone/Instrument Pre-Amplifier. The product features two completely independent channels with high gain, ultra low noise pre-amps. It provides low impedance microphone inputs and high impedance instrument inputs for superior sonic quality with microphones, guitars, and other instruments. Each channel has selectable gain ranges, low cut filters, phase inversion switches, and large VU meters. The DMP3 is ideal for stereo or dual mic applications.
The M-Audio DMP3 is a desktop unit featuring two independent channels with high-gain, ultra-low noise pre-amplifiers. It provides low-impedance XLR inputs for microphones (with optional phantom power) and high-impedance 1/4" TS inputs for instruments like guitars. Each channel includes separate gain controls, low-cut filters, phase inversion switches, and VU meters with clip indicators.
The unit requires a 9v AC 1 Amp 2.5mm power supply.
The DMP3 provides up to 66dB of gain on the XLR inputs.
When engaged, phantom power sends 48v to the ground wire on both microphone channels.
