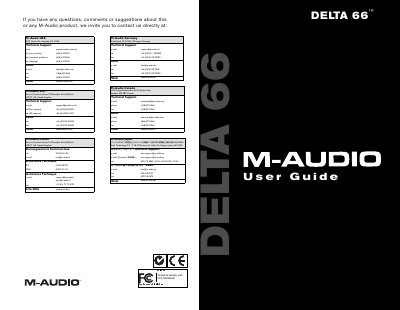

M-Audio Delta 66 Digital Recording Interface User Guide

This document is the User Guide for DELTA 66™ DELTA 66, which introduces the product features and specifications of the DELTA 66 Digital Recording Interface, as well as the steps for installation and driver software.

Brand: M-Audio
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 49
File format: PDF
File size: 4.4 MB
Published: 03 July, 2012
Updated: 28 September, 2023
MD5 checksum: 001A3E12A227A5E2BB35A88D54DEB3A9
PDF: M-Audio Delta 66 Digital Recording Interface User Guide PDF

About this manual

This manual provides instructions for installing and operating the M-Audio Delta 66 Digital Recording Interface. It covers physical installation of the PCI host card and external break-out box, as well as software drivers for Windows 95/98/NT and Macintosh OS.

The guide details the interface's features, including six analog I/O channels and S/PDIF digital connectivity supporting up to 24-bit/96kHz. It explains how to configure the included Delta Control Panel software for routing, monitoring, and hardware settings.

What's inside

Introduction
What's in the Box?
Product Features & Specifications
Minimum System Requirements
Hardware Installation
Delta Driver & Software Installation
Delta System Overview
Delta 66 Control Panel Software
Delta 66 Recording Tutorials
Troubleshooting

Specifications

Data Width	24-bit
Sampling Rate Range	8kHz to 96kHz
Analog I/O Channels	4x4
Dynamic Range	exceeding 103dB

Frequently asked questions

What are the minimum system requirements for Windows?

Windows 95 or Windows 98, Pentium II 266MHz for 96kHz operation.

Can the Delta 66 handle multiple cards?

Yes, it supports ASIO1 and ASIO2 multi-card drivers.
