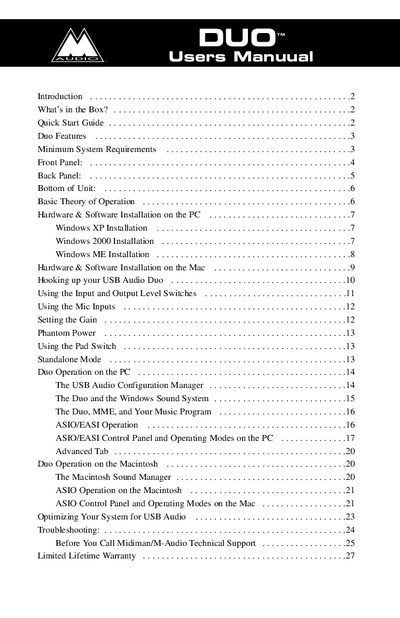

This document is a quick start guide for a product, describing its features and minimum system requirements.
The M-Audio Duo is a complete USB audio solution designed for PC and Macintosh computers. It features two high-quality microphone preamps with individual gain controls, two line inputs, and two line outputs supporting both +4dBu and -10dBV levels. The device also includes an S/PDIF digital output and a headphone output for personal monitoring.
| Dynamic Range (Mic In to Line Out) | 107dB |
|---|---|
| THD+N (Mic In to Line Out) | <0.002% |
| Maximum Gain | 60dB |
| Sampling Frequencies | up to 96kHz |
| Phantom Power | 48V |
A USB equipped Mac G3 with Mac OS 9.1 minimum is required.
Yes, the Standalone mode allows it to operate as a mic preamp or A/D converter independent of the computer.
The Duo operates at either +4 or -10 line levels.
