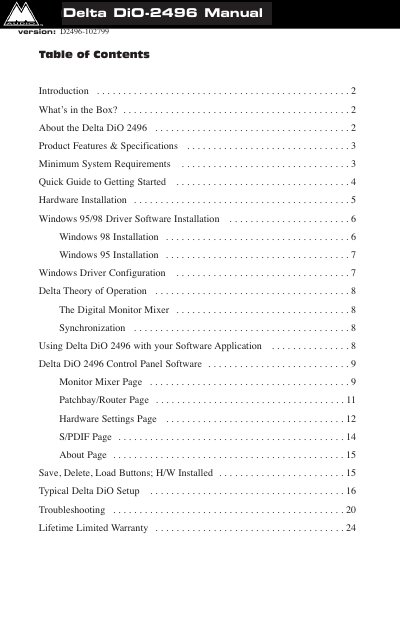

This manual introduces the features and characteristics of the Delta DiO 2496, and provides a quick start guide and Windows driver installation instructions.
This manual provides instructions for the M-Audio Delta DiO 2496, a half-size PCI audio interface card designed for digital recording systems. It details the contents of the package, system requirements, and step-by-step hardware installation procedures, including jumper settings for analog output levels.
| Audio Interface Type | 2-in, 4-out 24-bit/96kHz full-duplex |
|---|---|
| Form Factor | half-size PCI card |
| Digital I/O | S/PDIF inputs and outputs on Coaxial and Optical jacks |
| Analog Output Level | +4dB or -10dB |
| Dynamic Range | 101dB (A-weighted) |
| THD | 0.002% @ 0dBFS |
| PCI Controller Resolution | 36-bit |
| Operating System Support | Windows 95, 98 or NT 4 |
The box contains the instruction manual, the adapter card, a driver diskette for Windows 95/98, control panel software, and a warranty registration card.
The system requires Windows 95, 98, or NT 4, a Pentium 200 MMX processor, 64 MB of PC100 RAM, and a UDMA EIDE Hard disk.
