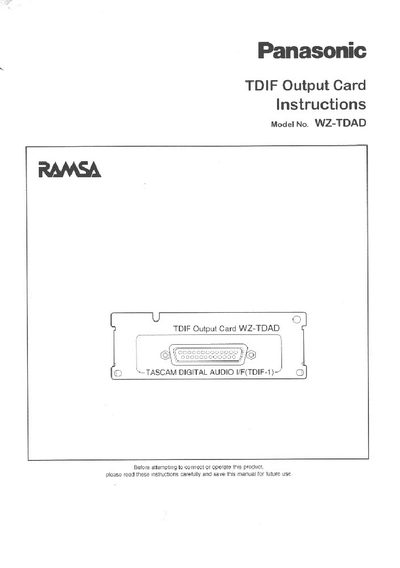

The WZ-TDAD is an option card designed to be installed in the AD Converter WZ-AD96 and WZ-AD9GM. It supplies 8-channel/24-bit/48kHz or 4-channel/24-bit/96kHz data in TDIF format, enabling connection with external DTRS digital tape recorders such as TASCAM DA88, DA38, DA98, or DA78.
Installation requires disconnecting power and removing the standard AES/EBU output block. Users must set DIP switch #1 based on the connected DTRS model (OFF for DA88, ON for others) before inserting and securing the card.
| Channel Mode (Dual) | 4 ch, 24-bit, 88.2/96 kHz |
|---|---|
| Dimensions (mm) | 108(W) x 37(H) X 62(D) |
| Weight | 100 g (0.22 lbs) |
The card connects to external DTRS digital tape recorders such as TASCAM DA88, DA38, DA98 or DA78.
Set DIP switch #1 to OFF when connecting a DA88.
