This document is a troubleshooting guide for products from Panasonic Consumer Electronics Company. It lists a range of malfunction symptoms and their corresponding solutions.

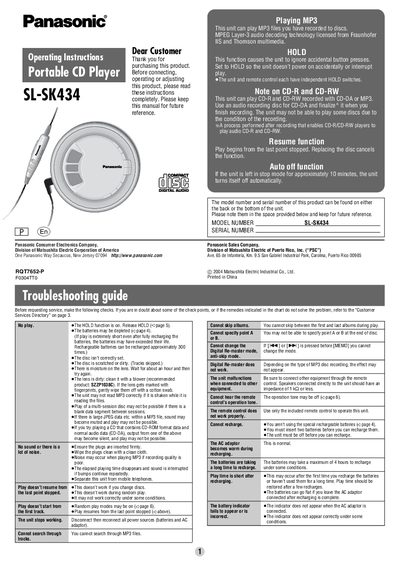

This document provides operating instructions for the Panasonic SL-SK434 Portable CD Player. It details how to use the unit to play standard audio CDs (CD-DA) and MP3 files, including specific notes on CD-R and CD-RW compatibility. The manual explains the functions of the HOLD switch, Auto Off, and Resume features, as well as how to use the included wired remote control.
| No. of channels | 2 (left and right, stereo) |
|---|---|
| Headphone output level | RMS max. 6 mW+6 mW/16 Q (adjustable) |
| Frequency response | 20 Hz to 20,000 Hz (+0.5 dB to —7 dB) |
| Light source | Semiconductor laser |
| Wavelength | 780 nm |
| Supported bit-rates (MP3) | 32 kbps to 320 kbps |
| Power supply | DC 45V |
| Operational temperature range | 0°C-40°C (32 °F-104 °F) |
| Dimensions (WxHxD) | 135 x 24.3x135 mm |
| Mass (with batteries) | 224 g (7.9 oz) |
Yes, this unit can play MP3 files you have recorded to discs using MPEG Layer-3 audio decoding technology.
While supported rates range from 32 kbps to 320 kbps, 128 kbps is recommended.
The batteries may take a maximum of 4 hours to recharge under some conditions.
