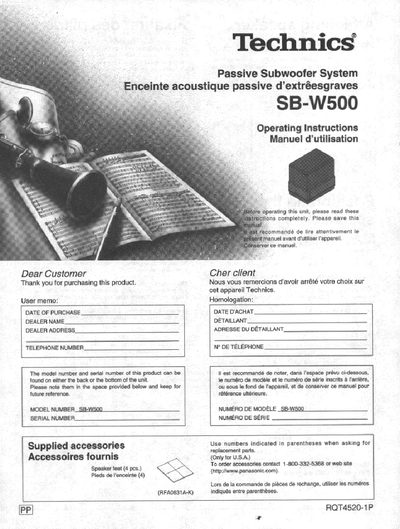

This document provides operating instructions for the Technics SB-W500 passive subwoofer system. It details how to attach the included speaker feet, position the unit correctly to avoid TV screen distortion, and connect it to a receiver. The manual includes specific wiring diagrams for connections to both SUBWOOFER and FRONT terminals.
| Type | 1 way, 2 speaker system |
|---|---|
| Bass-reflex | Yes |
| Speaker Woofer | 14 cm (5-1/2") cone type X2 |
| Impedance | 8 Ω/stereo, 16 Ω/mono |
| Input power (Music) | 160 W/stereo, 320 W/mono |
| Input power (DIN) | 80 W/stereo, 160 W/mono |
| Output sound pressure | 83 dB/W (1.0 m) |
| Frequency range | 40 Hz-550 Hz (at -16 dB) |
| Dimensions | 318.6X370X412.3 mm |
| Weight | 9.0 kg (19.84 Ib.) |
Lay the subwoofer on its longer side and attach the feet after removing the backing paper.
Irregular coloring may result; turn off the TV for 15 to 30 minutes to allow the demagnetizing function to eliminate the distortion.
