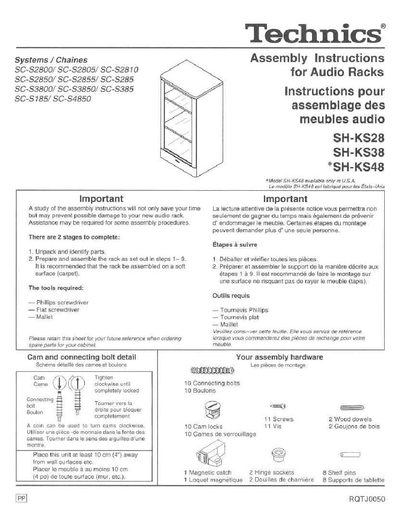

Technics SH-KS28/KS38/KS48 Manual

About this manual

This document provides assembly instructions for the Technics SH-KS28, SH-KS38, and SH-KS48 audio racks. It details the required tools, unpacking procedures, and a nine-step process for assembling the cabinet using cam locks, connecting bolts, and wood dowels. The guide includes diagrams and bilingual text (English/French) to assist with the construction.

What's inside

• Unpack and identify parts
• Tools required
• Bottom rail assembly
• Bottom panel assembly
• Side panel assembly
• Top panel assembly
• Recommended component placement
• Shelf installation
• Door installation
• Maintenance and care

Frequently asked questions

What tools are required for assembly?

The required tools are a Phillips screwdriver, a flat screwdriver, and a mallet.

Where should the audio rack be placed?

Place the unit at least 10 cm (4") away from wall surfaces.

How do you lock the cam locks?

Turn the cam locks 1/2 a turn clockwise to lock them together.
