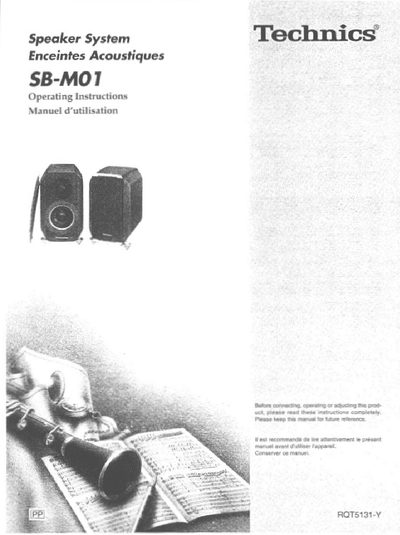

This document provides operating instructions for the Technics SB-M01, a 2-way speaker system featuring an 8 cm woofer and a 2.5 cm dome tweeter. It includes safety warnings, placement guidelines to optimize acoustic performance, and instructions for mounting the unit on its included stand.
| Speaker System Type | 2 way, 2 speaker system |
|---|---|
| Woofer Size | 8 cm (3-5/32") cone type |
| Tweeter Size | 2.5 cm (1") dome type |
| Impedance | 6Ω |
| Input Power (DIN) | 50 W |
| Sound Pressure Level | 79 dBW (1.0 m) |
| Crossover Frequency | 2.5 kHz |
| Frequency Range | 58 Hz — 40 kHz (at -16 dB) |
| Dimensions (WxHxD) | 136 x 223.5 x 213 mm |
There should be a space of approximately 5 cm between the speaker and the wall.
The unit can handle 100 W of music input power.
An amplifier that accepts speakers with an impedance of 6Ω is required.
