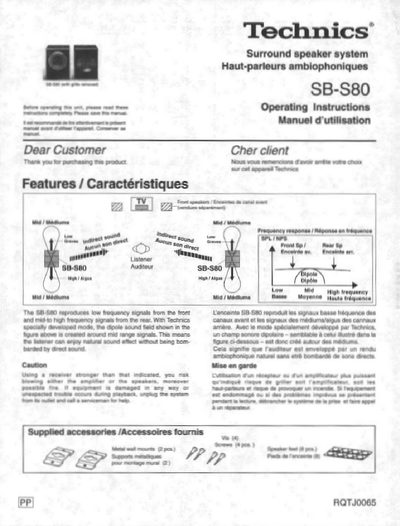

This document provides operating instructions for the Technics SB-S80 surround speaker system. It details features such as the natural surround sound effect provided by the enclosure design and includes safety warnings regarding volume levels and cleaning chemicals.
The guide covers installation methods, including wall mounting with included metal brackets or placement on shelves/floors. It specifies that the wall must support a weight of 2.2 kg and provides instructions for connecting speaker cables to the receiver, emphasizing correct polarity.
| Type | 2 way, 2 speaker system |
|---|---|
| Bass Reflex | Yes |
| Woofer Size | 8 cm (3-5/32") cone type |
| Impedance | 8 ohm |
| Allowed Input Power (Music) | 160 W |
| Allowed Input Power (DIN) | 80 W |
| Sound Pressure Level | 83 dB (1.0 m) |
| Frequency Range (-16 dB) | 80 Hz - 45 kHz |
| Dimensions (WxHxD) | 154 X 198 X 250 mm |
| Weight | 2.2 kg (4.8 lb.) |
Yes, if the speaker cannot be attached to the wall, it can alternatively be placed on top of a shelf or on the floor.
The wall must be strong enough to hold a weight of 2.2 kg.
Reduce the volume setting on the receiver and check the sound source and connections; the circuit will reset in a few minutes.
