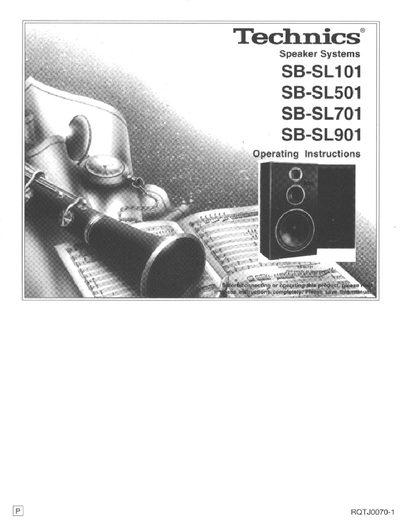

This document provides operating instructions for the Technics SB-SL101, SB-SL501, SB-SL701, and SB-SL901 speaker systems. It details proper placement to optimize sound quality and prevent acoustic feedback, along with specific guidelines for connecting the speakers to an amplifier.
| Type (SB-SL101) | 2 way, 2 speaker system |
|---|---|
| Woofer (SB-SL101) | 6-3/4" (17cm) cone type |
| Tweeter (SB-SL101) | 2-9/16" (6.5cm) cone type |
| Impedance (SB-SL101) | 8 ohms |
| Frequency range (SB-SL101) | 46Hz ~ 22kHz (-16dB) |
| Type (SB-SL501) | 3 way, 3 speaker system |
| Woofer (SB-SL501) | 8" (25cm) cone type |
| Power handling (SB-SL501) | 140W (music), 70W DIN |
| Type (SB-SL701) | 3 way, 3 speaker system |
| Woofer (SB-SL701) | 10" (25cm) cone type |
| Power handling (SB-SL701) | 200W (music), 100W DIN |
| Type (SB-SL901) | 3 way, 3 speaker system |
| Woofer (SB-SL901) | 15" (38cm) cone type |
| Power handling (SB-SL901) | 200W (music), 100W DIN |
The model number and serial number of this product can be found on the back of the unit.
Wipe the enclosure with a soft, dry cloth, or use a cloth soaked in a weak soap and water solution if the dirt is excessive, followed by wiping it dry.
Do not use alcohol, paint thinner, benzine, or other volatile chemicals because they may damage the finish and cause it to lose its luster.
The system should be used with an amplifier having 8 ohms or below impedance speaker terminals.
