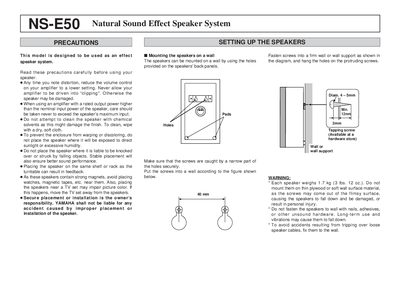

This manual introduces the use and precautions of NS-E50 Natural Sound Effect Speaker System.
The Yamaha NS-E50 is a full range acoustic-suspension speaker system designed to be used with an amplifier. This manual covers precautions for safe operation, including avoiding amplifier clipping and proper placement to prevent damage or injury. It details how to mount the speakers on a wall securely and how to connect them to an amplifier using the provided cables.
| Type | Full range acoustic-suspension speaker system |
|---|---|
| Nominal Impedance | 6 ohms |
| Frequency Response | 70 Hz — 20 kHz |
| Nominal Input Power | 25W |
| Sensitivity | 90 dB/Aw/m |
| Dimensions | 170 mm x 280 mm x 107 mm |
Reduce volume if distortion is noted and never allow the amplifier to be driven into clipping to prevent damage.
Do not use chemical solvents; instead, wipe the speaker with a dry, soft cloth.
Use the holes provided on the back panel with screws fastened into a firm wall or wall support.
Connect the blue-marked side of the cable to the (+) terminals and the unmarked side to the (-) terminals.
