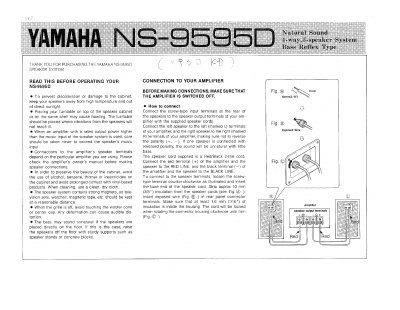

This manual provides instructions for the Yamaha NS-9595D speaker system, including safety precautions, connection guidelines, and tone response settings. It details how to connect the speakers to an amplifier, ensuring correct polarity and proper placement to avoid damage or sound distortion. The document also explains the Auto Reset Speaker Protection mechanism and how to remove or replace the front grille.
| Type | 4-way, 5-speaker bass reflex |
|---|---|
| Music Input | 300W |
| Frequency Response | 20~22,000 Hz |
| Nominal Impedance | 8 ohms |
| Dimensions | 460 x 720 x 258 mm |
| Weight | 18.0 kg |
The patterns are CLEAR for crisp sound, NATURAL for balanced sound, and SOFT for low-pitched sound.
The Auto Reset Speaker Protection cuts the signal to the tweeter and super tweeter if input exceeds the music input, then returns automatically.
The signal to the tweeter and super tweeter units will be reduced, resulting in an unnatural sound.
