This document provides detailed instructions on precautions to take before using the speakers, including installation location, moisture and fire prevention, and avoiding placing fragile objects on the speakers.

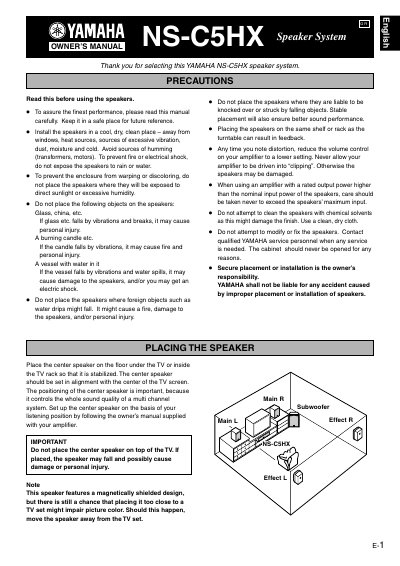

This document is the owner's manual for the Yamaha NS-C5HX speaker system. It provides essential safety precautions regarding placement to prevent damage or injury from falling objects, water, or heat sources. The guide also advises on avoiding amplifier clipping and keeping the speakers away from direct sunlight or humidity.
The manual details how to connect the center channel speaker to an amplifier using standard screw-type terminals or bi-wired connections for improved sound quality. It includes instructions for removing the front cover if desired and lists technical specifications such as frequency response, impedance, and dimensions.
| System Type | 2-way 3-speaker acoustic suspension speaker system |
|---|---|
| Driver Configuration | 13 cm (5") cone woofer x 2, Wave guide horn 3 cm (1") dome tweeter |
| Impedance | 6 ohms |
| Frequency Response | 55 Hz to 50 kHz |
| Nominal Input Power | 100 W |
| Maximum Input Power | 300 W |
| Sensitivity | 91 dB/2.83 V/m |
| Dimensions (WxHxD) | 500 x 186 x 257mm (19-11/16" x 7-5/16" x 10-1/8") |
Yes, the system is capable of bi-wired connections by removing short bars from terminals and connecting woofer and tweeter separately with two pairs of cables.
The center speaker should be placed on the floor under the TV or inside the TV rack, aligned with the center of the TV screen.
If the amplifier is driven into clipping, the speakers may be damaged.
