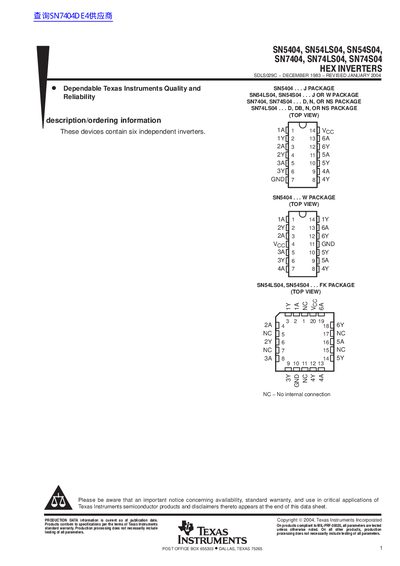

This document is a technical datasheet for the SN5404, SN54LS04, SN54S04, SN7404, SN74LS04, and SN74S04 series of Hex Inverters manufactured by Texas Instruments. The devices contain six independent inverters and are available in various packages including D, N, NS, J, W, and FK. The datasheet covers absolute maximum ratings, recommended operating conditions, and electrical characteristics for all listed models.
| Number of Independent Inverters | Six |
|---|---|
| Operating Temperature Range (SN5404) | -55°C to 125°C |
| Propagation Delay (SN74LS04) | 10 ns to 15 ns |
The device contains six independent inverters.
The operating free-air temperature range is -55°C to 125°C.
