The OPA2107 is a dual operational amplifier with features including very low noise, low offset voltage and drift, low input bias current, fast settling time, etc. It is suitable for precision and low-noise analog circuitry and can be used to upgrade designs currently using BIFET amplifiers.

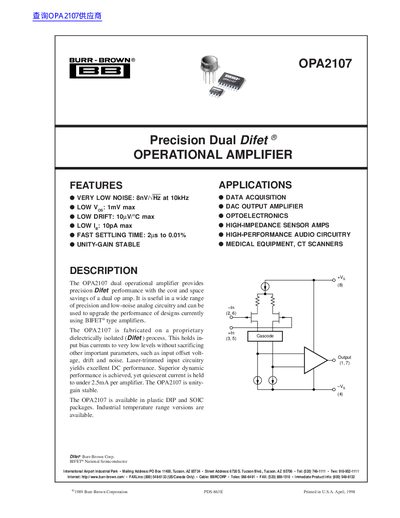

The OPA2107 is a precision dual Difet operational amplifier designed for wide-range precision and low-noise analog applications. It offers very low noise (8nV/√Hz at 10kHz), low input offset voltage (1mV max), and low drift (10 µV/°C max). The device is fabricated using a proprietary dielectrically isolated process to hold input bias currents to very low levels without sacrificing other parameters.
| Average Drift | 3 µV/°C max |
|---|---|
| Unity-Gain Bandwidth Product | 4.5 MHz |
| Slew Rate (Min) | 13 V/µs |
The device operates from -25°C to +85°C.
Yes, the OPA2107 is unity-gain stable.
It is available in plastic DIP and SOIC packages.
