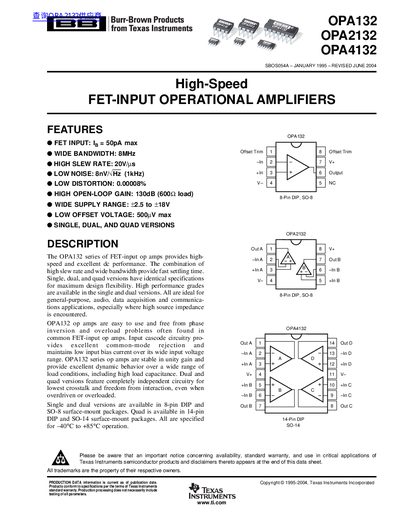

Texas Instruments OPA132/OPA2132/OPA4132 Operational Amplifier Datasheet

About this manual

The OPA132 series of FET-input operational amplifiers provides high speed and excellent DC performance. The combination of high slew rate and wide bandwidth provides fast settling time. Single, dual, and quad versions are available for maximum design flexibility.

These op amps are easy to use and free from phase inversion and overload problems often found in common FET-input op amps. Input cascode circuitry provides excellent common-mode rejection and maintains low input bias current over its wide input voltage range.

What's inside

• Features
• Description
• Absolute Maximum Ratings
• Specifications
• Typical Performance Curves
• Package/Ordering Information
• ESD Sensitivity

Specifications

Frequently asked questions

What is the bandwidth of the OPA132 series?

The series features a wide bandwidth of 8MHz.

What is the maximum operating temperature range for these operational amplifiers?

The devices are specified for operation from -40°C to +85°C.

What is the maximum input offset voltage for the OPA132 series?

The maximum input offset voltage is 500 microvolts.

What is the maximum supply voltage range for these amplifiers?

The wide supply range extends from +2.5V to +18V.
