The document introduces the technical overview of an Agilent Natural Gas Analyzer. The instrument uses a Thermal Conductivity Detector (TCD) to identify components such as isobutane, n-butane, isopentane, n-pentane, carbon dioxide, ethane, hydrogen sulfide, propane, oxygen/argon composite, nitrogen, methane, and carbon monoxide. The lower detection limit of the TCD is 200 ppm for most components, except for carbon monoxide which is 400 ppm. The system is compliant with Gas Processors Association Methods 2177 and/or 2261, and the analysis time is approximately 25 minutes.

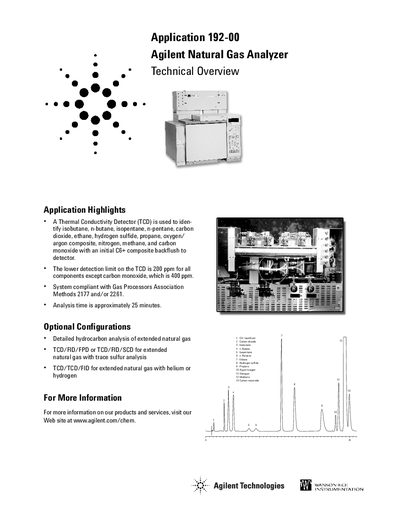

This document provides a technical overview of the Agilent 192-00 Natural Gas Analyzer. The system utilizes a Thermal Conductivity Detector (TCD) to identify specific hydrocarbons and other gases, including isobutane, n-butane, isopentane, n-pentane, carbon dioxide, ethane, hydrogen sulfide, propane, oxygen/argon composite, nitrogen, methane, and carbon monoxide. An initial C6+ composite backflush is used to the detector to ensure accurate identification.
| Detection Limit (TCD) | 200 ppm for all components except carbon monoxide |
|---|---|
| Detection Limit (Carbon Monoxide) | 400 ppm |
| Analysis Time | approximately 25 minutes |
| Compliance | Gas Processors Association Methods 2177 and/or 2261 |
It identifies isobutane, n-butane, isopentane, n-pentane, carbon dioxide, ethane, hydrogen sulfide, propane, oxygen/argon composite, nitrogen, methane, and carbon monoxide.
The analysis time is approximately 25 minutes.
