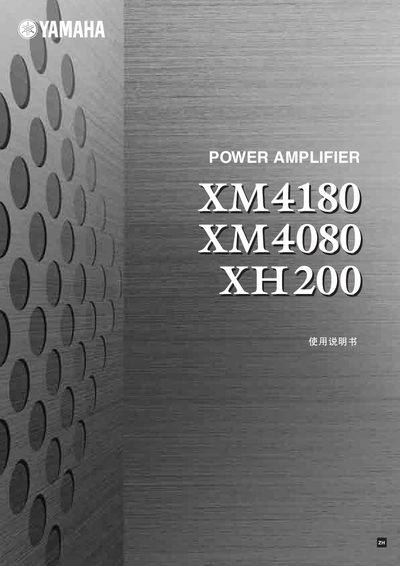

Yamaha XM4180/XM4080/XH200 Power Amplifier User Manual

This document is the owner's manual for the XM4180/XM4080/XH200 power amplifier, including important safety instructions and operation maintenance guidelines.

Brand: Yamaha
Category: Musical instruments
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 1.6 MB
Published: 13 June, 2012
Updated: 29 September, 2023
Models: XM4180, XM4080, XH200
MD5 checksum: 0CA8BCCCA3849FE348F0C09E263AE764
PDF: Yamaha XM4180/XM4080/XH200 Power Amplifier User Manual PDF

About this manual

This document serves as the user manual for the Yamaha XM4180, XM4080, and XH200 power amplifiers. It covers essential safety instructions, including warnings about electric shock and proper installation near heat sources. The guide details the specific features and operational modes available for each model in the series.

What's inside

FCC Information
Safety Instructions
Connecting the Plug and Cord
Front Panel Controls
Rear Panel Connections
XM4180/XM4080 Specifications
XH200 Specifications
Monitor/Remote Pinout
Speaker Connections
AC Input

Specifications

Input Sensitivity (XM4180/XM4080)	2V rms
Input Sensitivity (XH200)	4V rms
Input Sensitivity (XH200)	100V
Frequency Response (XH200)	20Hz to 20kHz

Frequently asked questions

What is the input sensitivity for the XM4180 and XM4080?

The input sensitivity for the XM4180 and XM4080 is 2V rms.

What is the input sensitivity for the XH200?

The input sensitivity for the XH200 is 4V rms.

Can the XH200 accept 100V input?

Yes, the XH200 can accept 100V input.
