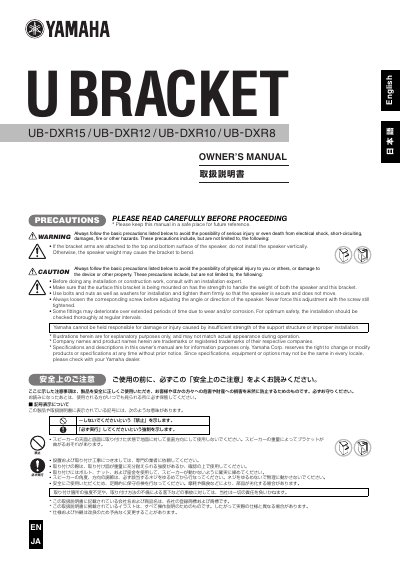

This document is the owner's manual for the UB-DXR series speakers, providing instructions and precautions for installation and use of the speakers.
This Owner's Manual provides instructions for installing the Yamaha U Bracket (models UB-DXR15, UB-DXR12, UB-DXR10, and UB-DXR8) on walls or ceilings. The bracket is designed to support speakers securely, with specific assembly steps for vertical and horizontal mounting configurations.
| Weight (UB-DXR15) | 7.6kg |
|---|---|
| Weight (UB-DXR12) | 5.7kg |
| Weight (UB-DXR10) | 4.2kg |
| Weight (UB-DXR8) | 3.7kg |
Use the included M8x25 hexagon bolts, spring washers, and flat washers to attach the speaker to the U bracket.
No, you should avoid attaching the U bracket to drywall, such as acoustic tiles, and ensure the wall surface is strong enough to support the total weight.
