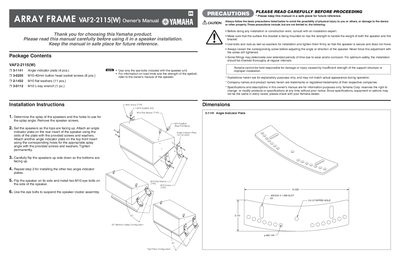

Yamaha VAF2-2115(W) Array Frame Installation Guide

About this manual

This document provides installation instructions for the Yamaha VAF2-2115(W) Array Frame. It details the package contents, including angle indicator plates, screws, washers, and eye bolts, and emphasizes safety precautions regarding support structure strength and proper tightening.

The guide outlines a step-by-step process for installing the frame, which involves attaching angle indicator plates to the speaker inserts to set the splay angle, flipping the assembly, and installing M10 eye bolts to suspend the speaker cluster.

What's inside

• Package Contents
• Safety Precautions
• Installation Instructions
• Tight Pack Configuration
• Angle Indicator Plate

Frequently asked questions

What hardware is included in the package for installing this frame?

The package includes four angle indicator plates, eight M10-40mm button head socket screws, eleven M10 flat washers, and one M10 L-key wrench.

What specific hardware must be used to suspend the speaker cluster?

You must use only the eye bolts included with the speaker unit to suspend the assembly.

What is the diameter of the tapped hole on the angle indicator plate?

The angle indicator plate features a 1/2-13 tapped hole.
