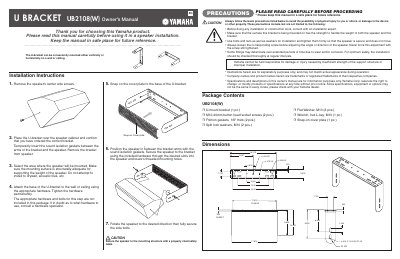

Yamaha UB2108(W) U-Mount Bracket Installation Instructions

About this manual

This document provides step-by-step installation instructions for the Yamaha UB2108(W) U-mount bracket, which is designed to be mounted vertically or horizontally on a wall or ceiling. It details how to attach the base and secure the speaker using included hardware.

The guide includes important safety precautions regarding structural support strength, proper use of bolts and washers, and securing speakers with safety cables. It also lists package contents and provides dimensional drawings.

What's inside

• Installation Instructions
• Precautions
• Package Contents
• Dimensions

Frequently asked questions

Can the U-bracket be mounted on a ceiling?

Yes, the bracket can be mounted either vertically or horizontally on a wall or ceiling.

What thickness of friction gaskets are included in the package?

The package includes two friction gaskets that are 1/8" thick.
