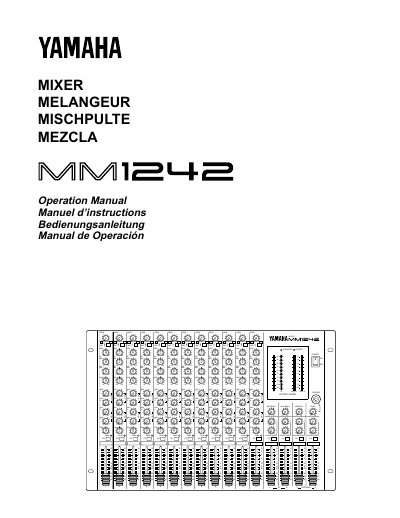

This document is the operation manual for MIXER MELANGEUR MISCHPULTE MEZCLA, providing information on the product's features and operation instructions.
Congratulations on your new Yamaha MM1242 Mixer. This high-quality mixing console combines ease of operation with superior sound performance suitable for a wide range of applications. The unit features twelve input channels, stereo mix output, and built-in phantom power for condenser microphones.
The manual details the operation of various front panel controls, including the GAIN adjustment, LINE/MIC switch, four-band equalizer, and AUX send controls. It also explains the function of the PFL (Pre Fader Listen) switch, PEAK indicators, and the PAN control for stereo positioning. Additionally, it covers the Master Section and provides information on connecting external effects units via the AUX connectors.
| Number of Input Channels | Twelve |
|---|---|
| Gain Range (Mic) | -16dB to -60dB |
| Gain Range (Line) | +10dB to -26dB |
| AUX Send Connectors | Four |
Pressing the PFL switch allows you to monitor the pre-fader input channel signal through the MONITOR OUT or the PHONES connector.
Use the LINE/MIC switch; push it in to MIC for microphones and set it to LINE for line sources.
The maximum range for each equalizer control is +15dB.
