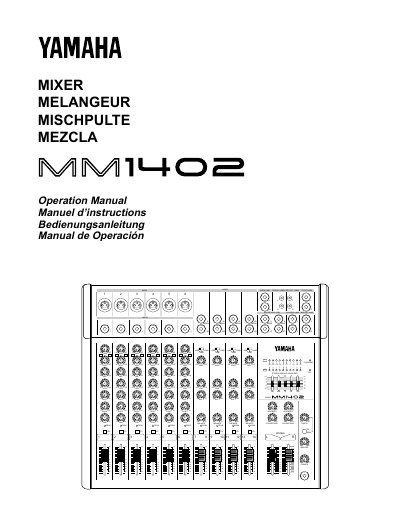

The Yamaha MM1402 is a console-type stereo mixer designed for a wide variety of input sources. It provides six MONO IN channels featuring XLR type MIC IN jacks and TRS phone LINE IN jacks, plus four STEREO IN channels with L/MONO and R phone jacks. The unit supports phantom power for condenser microphones on the mono inputs.
Key features include a five-band master graphic equalizer in the stereo output stage, two AUX return systems for effect units or stereo sources, and recording capabilities via TAPE IN and REC OUT jacks. All 14 inputs offer PFL (pre fader listen) functionality for monitoring signals through headphones or the MONITOR OUT.
| Mono Input Channels | 6 MONO IN channels |
|---|---|
| Stereo Input Channels | 4 STEREO IN channels |
| Total Inputs | 14 inputs |
| MIC IN Gain Range | -14 ~ -60 dB |
| LINE IN Gain Range | +10 ~ —36 db |
| Phantom Power | +48 V |
| Stereo Input Jacks Switchable Levels | -20/-10/+4 dB |
| Master Equalizer Type | Five-band graphic equalizer |
Yes, the MIC IN jacks are able to provide +48 V phantom power for condenser mics.
Two AUX return systems are provided for use as effect unit returns or stereo source inputs.
The PFL (pre fader listen) switch allows you to monitor the signal or input level using headphones or MONITOR OUT.
