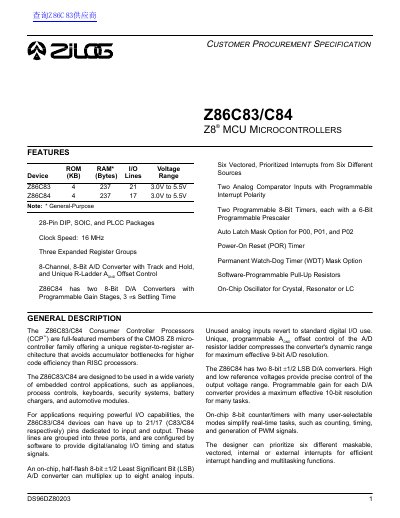

DS96DZ80203 1 1 C is a Z86C83/C84 series microcontroller from Texas Instruments. The series of microcontrollers has 8-Channel, 8-Bit A/D Converter, Track and Hold, R-Ladder A GND Offset Control, Z86C84 has two 8-Bit D/A Converters, Programmable Gain Stages, 3 µ s Settling Time, Six Vectored, Prioritized Interrupts from Six Different Sources, Two Analog Comparator Inputs, Two Programmable 8-Bit Timers, each with a 6-Bit Programmable Prescaler, Auto Latch Mask Option for P00, P01, and P02, Power-On Reset (POR) Timer, Permanent Watch-Dog Timer (WDT) Mask Option, Software-Programmable Pull-Up Resistors, On-Chip Oscillator for Crystal, Resonator or LC features.
The document describes the Z86C83/C84 Consumer Controller Processors (CCP™), which are full-featured members of the CMOS Z8 microcontroller family. These devices offer a unique register-to-register architecture designed to avoid accumulator bottlenecks, providing higher code efficiency than RISC processors for embedded control applications.
| Clock Speed | 16 MHz |
|---|---|
| Packages | 28-Pin DIP, SOIC, and PLCC |
| Voltage Range | 3.0V to 5.5V |
| A/D Converter Channels | 8-Channel, 8-Bit |
| Settling Time (Z86C84) | 3 µs |
| Interrupts | Six Vectored, Prioritized Interrupts |
| Timers | Two Programmable 8-Bit Timers |
The devices support a clock speed of up to 16 MHz.
The total power dissipation should not exceed 770 mW.
