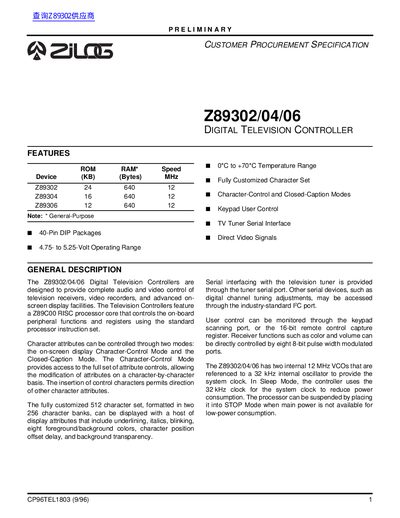

This is the user manual for the Z89302/04/06 digital television controller, which introduces the functions and usage of the controller.
The Z89302/04/06 Digital Television Controllers are designed to provide complete audio and video control of television receivers, video recorders, and advanced on-screen display facilities. The device features a Z89C00 RISC processor core that controls on-board peripheral functions and registers using the standard processor instruction set.
| Operating Voltage Range | 4.75 to 5.25 V |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Package Type | 40-Pin DIP |
| Internal Clock Frequency | 12 MHz |
| ROM Size (Z89302) | 24 KB |
| RAM Size | 640 Bytes |
The device operates within a 4.75 to 5.25-volt range.
It features a Z89C00 RISC processor core.
