The document describes the features and characteristics of the Siliconix J500 series products, including wide current range, no biasing required, maximum operating temperature, etc.

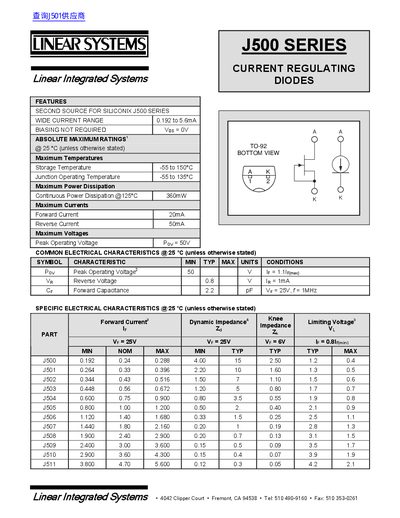

This document is a datasheet for the Linear Integrated Systems J500 Series current regulating diodes. It serves as a second-source alternative for Siliconix J500 Series components. The device operates without biasing and offers a wide current range from 0.192 to 5.6mA.
| Current Range | 0.192 to 5.6mA |
|---|---|
| Biasing Requirement | Not required |
| Peak Operating Voltage | 50 V |
| Reverse Voltage | 0.8 V |
| Forward Capacitance | 2.2 pF |
| Forward Current | 20mA |
| Reverse Current | 50mA |
| Maximum Power Dissipation | 360mW |
| Storage Temperature | -55 to 150°C |
| Junction Operating Temperature | -55 to 135°C |
| Packaging | TO-92 |
The current range is 0.192 to 5.6mA.
No, biasing is not required for this series.
The peak operating voltage is 50V.
The maximum power dissipation is 360mW.
