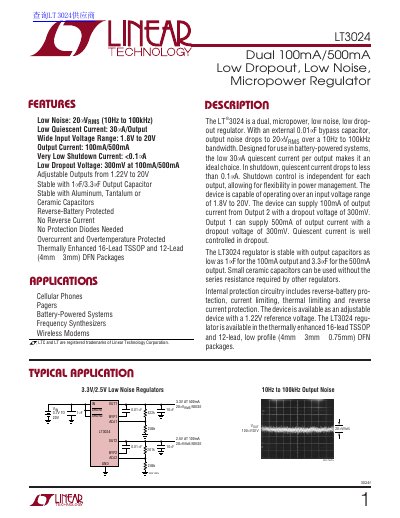

The LT3024 is a dual, micropower, low noise, low dropout regulator with features including low noise, low quiescent current, wide input voltage range, adjustable output voltage, and various protection functions.
The LT3024 is a dual micropower, low noise, low dropout voltage regulator designed for battery-powered systems such as cellular phones and pagers. It features independent shutdown control for each output, allowing flexible power management with quiescent currents as low as 30µA per output in normal operation and less than 0.1pA in shutdown mode.
| Output Noise | 20uVrms (10Hz to 100kHz) |
|---|---|
| Quiescent Current | 30uA/Output |
| Input Voltage Range | 1.8V to 20V |
| Output Current (Output 2) | 100mA |
| Output Current (Output 1) | 500mA |
| Shutdown Current | <0.1pA |
| Adjustable Output Range | 1.22V to 20V |
| Dropout Voltage (Output 1) | 300mV at 500mA |
The minimum input voltage for Output 2 with a load of 100mA is 1.8V.
Yes, the device is stable with aluminum, tantalum, or ceramic capacitors.
