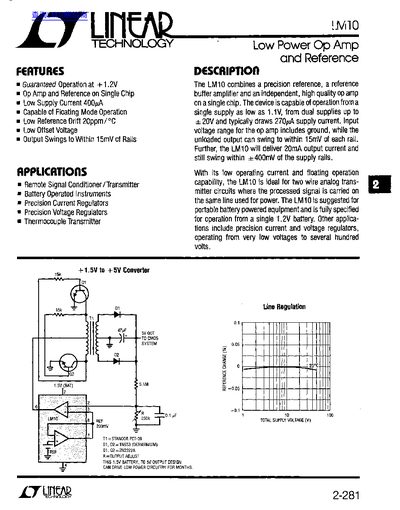

The LM10 is a single-chip device combining a precision reference, a reference buffer amplifier, and an independent high-quality operational amplifier. It is designed for low-power applications, featuring a guaranteed operation at supply voltages as low as +1.2V and a typical supply current of 270µA. The device is suitable for floating mode operation and is ideal for two-wire analog transmitter circuits and battery-operated instruments.
| Supply Current | 270µA typical |
|---|---|
| Output Current | 20mA |
| Reference Drift | 20ppm/°C |
Yes, the device is capable of floating mode operation.
The device is capable of operation from a single supply as low as 1.1V.
