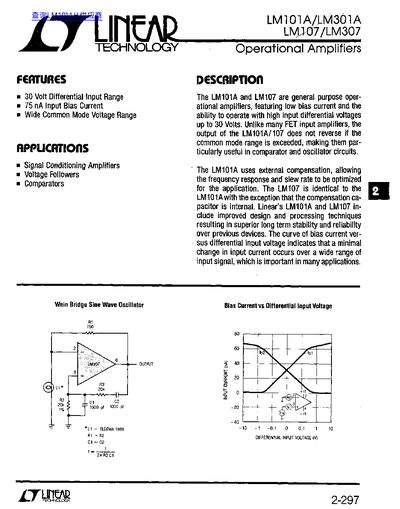

The document describes general-purpose operational amplifiers featuring low bias current and a high input differential voltage range of up to 30 volts. The LM101A requires external compensation for optimized frequency response, while the LM107 includes an internal compensation capacitor. Both devices offer improved design techniques for superior long-term stability.
| Differential Input Voltage Range | +/- 30 Volts |
|---|---|
| Input Bias Current (Typical) | 75 nA |
| Large Signal Voltage Gain (Min) | 25 V/mV |
| Power Supply Rejection Ratio (Typical) | 96 dB |
The devices can operate with high input differential voltages up to 30 Volts.
The output may be shorted indefinitely, provided the case temperature stays below specific limits.
