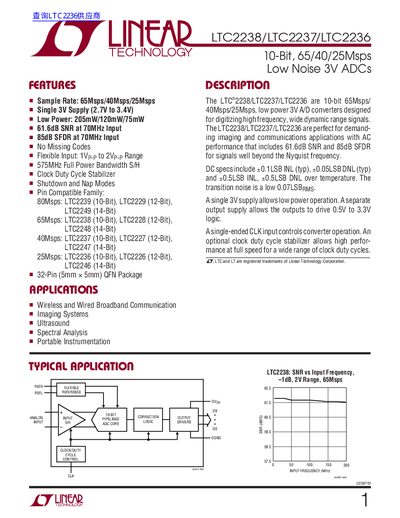

The LTC ®2238/LTC2237/LTC2236 are 10-bit 65Msps/ 40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals.
The LTC2238/LTC2237/LTC2236 are 10-bit, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. They feature sample rates of 65Msps, 40Msps, and 25Msps respectively, with AC performance including 61.6dB SNR at 70MHz input.
| Resolution | 10 Bits (No Missing Codes) |
|---|---|
| Supply Voltage | Single 3V (2.7V to 3.4V) |
| Low Power Consumption | 205mW / 120mW / 75mW |
| SNR at 70MHz Input | 61.6dB |
| SFDR at 70MHz Input | 85dB |
| Full Power Bandwidth S/H | 575MHz |
| Package Type | 32-Pin (5mm x 5mm) QFN |
The standard operating temperature range is 0°C to 70°C.
Yes, an optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
