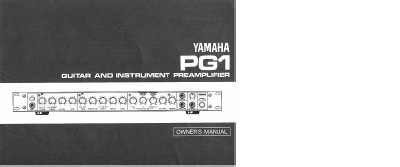

This document is the owner's manual for the Yamaha PGT, a rack-mountable guitar and instrument preamplifier. It features independent A and B sound channels, with channel B including a gain control for distortion generation. The unit incorporates a parametric equalizer to compensate for frequency response or modify sound as desired.
| Gain (A ch) | 36 dB |
|---|---|
| Gain (B ch) | 63 dB |
| Noise (A ch) | Less than -75 dB |
| Dimensions | 480 x 54 x 325 mm |
| Weight | 5.7 kg |
Turn the PULL FAT/GAIN control clockwise to increase gain until overdrive distortion begins.
Yes, plugging an optional footswitch into the FOOT Switch jack allows remote control of the equalizer.
U.S. & Canadian models require 120V AC, 60Hz.
