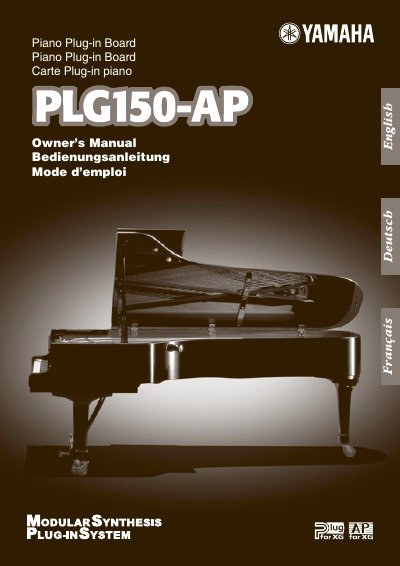

This document is the owner's manual for the Piano Plug-in Board Carte Plug-in piano, providing precautions and safety measures for using the plug-in board.
The Yamaha PLG150-AP is a custom tone generator designed specifically for piano voices. It integrates seamlessly into instruments using the Modular Synthesis Plug-in System (such as the S90, MOTIF, and MU series) or the XG Plug-in System. The board provides 32 acoustic piano voices that can be edited from the host device's panel.
| Polyphony | 64 (when using mono-sampled voices) |
|---|---|
| Number of voices | 32 voices (AP-XG/A, AP-XG/B, Preset) |
| Interface | Plug-in connector |
| Effects | Reverb, Chorus, Insertion, 2-Band EQ |
| Dimensions (W x H x D) | 138.5 x 89.0 x 8.5mm |
Compatible instruments include the MOTIF ES, S90, and the MU128.
The board provides a total of 32 acoustic piano voices.
It includes four separate effect blocks: Reverb, Chorus, Insertion, and two-band EQ.
