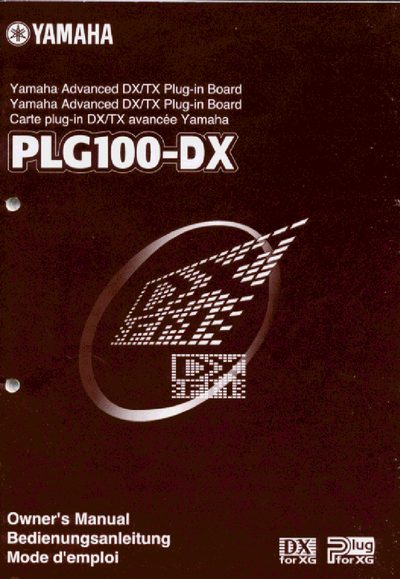

Yamaha PLG100-DX Owner's Manual

This document describes how to use and maintain the Yamaha plug-in board.

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 495 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Model: G10
MD5 checksum: C895605E18F49E35F3FAAF83A2C3CA7C
PDF: Yamaha PLG100-DX Owner's Manual PDF

About this manual

The Yamaha PLG100-DX is an advanced plug-in board designed for XG tone generators and sequencers, such as the MU128. It features a six-operator FM tone generator system compatible with the legendary DX7 series, offering 912 preset voices and up to 16-note polyphony. The board includes built-in low pass, high pass filters, and a two-band equalizer to expand sound capabilities.

What's inside

Precautions
Introduction
Features of the PLG100-DX
Installing the PLG100-DX
Included Items
Necessary Items that Are Not Included
FM Tone Generation
About the CD-ROM
Installing and Starting the Plug-in Software
System Parameters

Specifications

Polyphony	Maximum 16 voice simultaneous polyphony
Preset Voices	912 preset DX series voices
Operators	Six operators
Algorithms	32 algorithms
Compatible Devices	MU128 or any other tone generator that supports XG plug-ins

Frequently asked questions

What tone generators are compatible with the PLG100-DX?

It is compatible with the MU128 or any other tone generator or sequencer that supports the XG plug-in system.

Can the PLG100-DX be used with DX7 voice data?

Yes, the PLG100-DX is compatible with the DX series and can receive voice data from the DX7 and DX7II.
