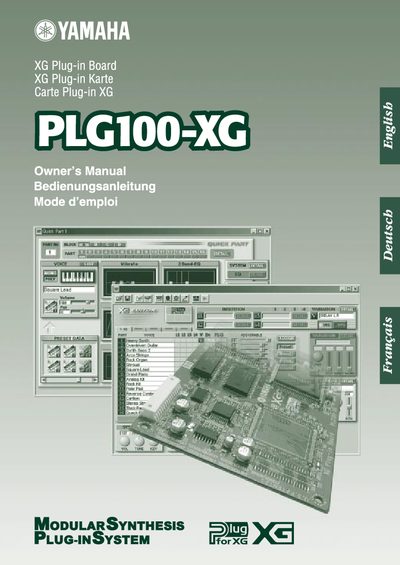

Yamaha PLG100-XG XG Plug-in Board Owner's Manual

This manual explains the basic structure, usage and precautions of the plugin board.

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 42
File format: PDF
File size: 441 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Model: G10
MD5 checksum: C5E9074337A4A8A2A8053E3B03F60278
PDF: Yamaha PLG100-XG XG Plug-in Board Owner's Manual PDF

About this manual

The Yamaha PLG100-XG is a full-featured XG/GM tone generator designed as an expansion board for MSPS-compatible synthesizers like the CS6x and S80. It provides complete compatibility with commercially available XG/GM song data, allowing users to play back complex arrangements on instruments that lack built-in XG capabilities.

What's inside

Overview of the PLG100-XG
Main Features of the PLG100-XG
Installing the PLG100-XG
Included Items
Required and Recommended Items
Specifications
About the Included CD-ROM and Floppy Disk
Installing the Software

Specifications

Tone Generation System	AWM2 (Advanced Wave Memory 2)
Polyphony	32 notes (when using one-element voices)
Voices	480 normal voices, 12 drum voices
Effects	Reverb (11 types), Chorus (11 types), Variation (42 types)
Dimensions	138.5 x 89 x 8.5 mm
Weight	569 g

Frequently asked questions

What synthesizers are compatible with the PLG100-XG?

It is designed for use in MSPS-compatible synthesizers such as the CS6x and S80, or XG Plug-in System compatible instruments like the MU2000.

What software is included with the board?

The package includes XGworks lite version 3.0 for Windows on the CD-ROM.
