This document provides precautions for using a plug-in board, including avoiding direct sunlight, excessive humidity, high temperatures, excessive dust, and strong vibrations. It also emphasizes the importance of static discharge, avoiding touching the inside area of the circuit board, protecting from water damage, and disconnecting power before installation. The document highlights the safety and proper use of the plug-in board, as well as the potential damage that may occur from improper handling.

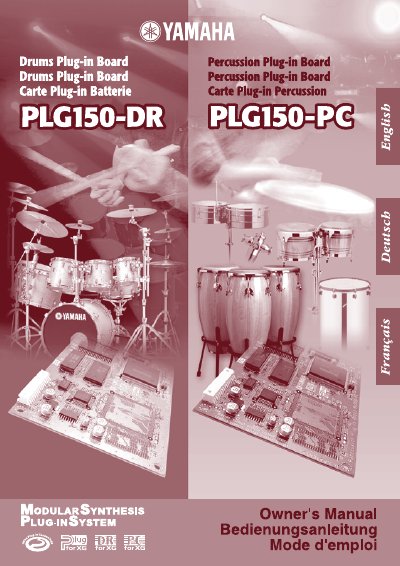

The Yamaha PLG150-DR (Drums) and PLG150-PC (Percussion) are custom tone generator plug-in boards designed to expand the sound capabilities of compatible Yamaha electronic musical instruments. These boards integrate seamlessly with devices supporting the Modular Synthesis Plug-in System or the XG Plug-in System, such as the MOTIF series, MU128, and SW1000XG.
| Polyphony | 32 (when using mono-sampled voices) |
|---|---|
| Number of voices | 80 Preset voices, 8 User voice area |
| Effects | Insertion, Reverb |
| Dimensions (W x H x D) | 138.5 x 89.0 x 8.5mm |
The board provides a total of 88 drum/percussion voices, consisting of 80 presets and 8 user areas.
The board includes two separate effect blocks for Insertion and Reverb that can be applied to each kit.
