This document introduces Z80C30 suppliers, including brand, model, and supplier information.

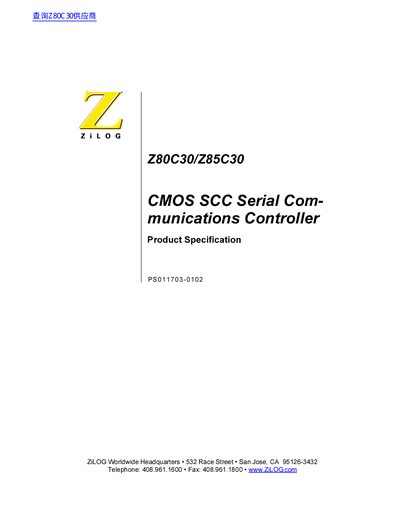

This document is a product specification datasheet for the Zilog Z80C30 and Z85C30 CMOS SCC (Serial Communications Controller) devices. It provides detailed technical information including general descriptions, functional details of I/O interfaces, programming instructions, and timing diagrams for both read/write cycles and interrupts.
The datasheet covers electrical characteristics such as absolute maximum ratings, DC and AC parameters, and capacitance values. It also includes packaging and ordering information, detailing available package types (DIP, PLCC) and speed options (8 MHz, 10 MHz, 16 MHz).
| Device Type | CMOS SCC Serial Communications Controller |
|---|---|
| Available Clock Speeds | 8 MHz, 10 MHz, 16 MHz |
| Package Types | Plastic DIP, Plastic Leaded Chip Carrier (PLCC), Ceramic DIP |
The Z85C30 is available in a version that operates at 16 MHz.
The devices are available for temperatures from -40°C to +100°C or from 0°C to +70°C.
