This document describes the features and characteristics of a product under the global brand name of Matsushita Electric Works, including suitability for magnetron and heater loads, excellent heat resistance, high insulation resistance, low operating power, and a wide variety of types.

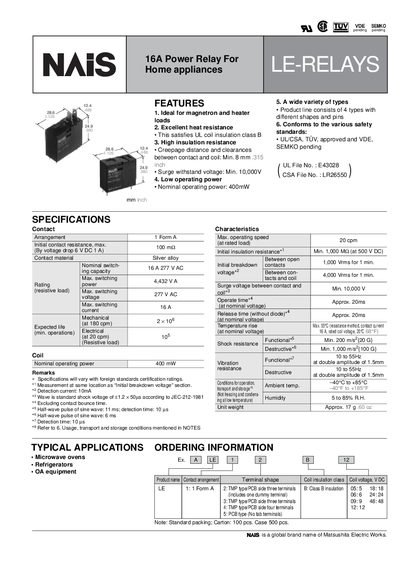

The NAIS LE series offers 16 A power relays designed for magnetron, heater loads and other home‑appliance applications. Features include high insulation resistance, UL/CSA/TUV safety certifications, low operating power (400 mW) and a compact form factor with various terminal configurations.
The leaflet includes ordering tables, dimensional drawings, environmental limits, soldering recommendations and handling notes. Typical applications are microwave ovens, refrigerators and other household equipment. Environmental specifications cover temperature ranges from –40 °F to +85 °F and humidity from 5 % to 85 % RH.
| Nominal operating power | 400 mW |
|---|---|
| Maximum switching voltage | 277 VAC |
| Initial insulation resistance | ≥ 1 000 MΩ |
| Maximum operating speed | 20 cpm |
| Surge withstand voltage | ≥ 10 000 V |
The nominal operating power is 400 mW.
The relay can be stored and transported between –40 °F and +85 °F (–40 °C to +29 °C).
