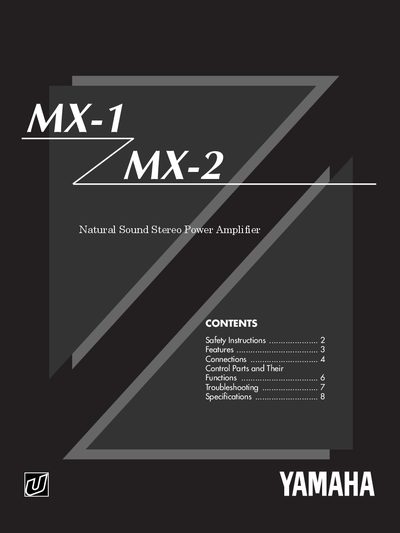

Yamaha MX-1/MX-2 Stereo Power Amplifier Owner's Manual

This manual introduces the features and usage of MX-1 MX-2 stereo power amplifier products

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 146 KB
Published: 11 June, 2012
Updated: 30 September, 2023
Models: MX-1, MX-2
MD5 checksum: 8F7B68036E61E85EC710BE3B81941A4C
PDF: Yamaha MX-1/MX-2 Stereo Power Amplifier Owner's Manual PDF

About this manual

This document serves as the Owner's Manual for the Yamaha MX-1 and MX-2 Natural Sound Stereo Power Amplifiers. It covers essential safety instructions, including warnings about electric shock, fire hazards, and proper ventilation. The guide details how to connect speakers and other components, specifically noting compatibility with Yamaha CX-1 or CX-2 pre-amplifiers via the remote control connector.

What's inside

Safety Instructions
Features
Connections
Connecting Speakers
Control Parts and Their Functions
Troubleshooting
Specifications

Specifications

MX-1 RMS Output Power	200W + 200W (8)
Total Harmonic Distortion	0.008%
Frequency Response	20-20,000 Hz

Frequently asked questions

Can I connect two speaker systems to this unit?

Yes, one or two speaker systems can be connected. If connecting two, use the SPEAKERS switches to select system A, B, or both.

How do I control the power of this unit with a pre-amplifier?

Connect the REMOTE CONTROL (PRE AMP) connector to the corresponding connector on a Yamaha CX-1 or CX-2 pre-amplifier.

What should I do if the unit does not operate normally?

Check the troubleshooting section for common operating errors before assuming the unit is faulty.
