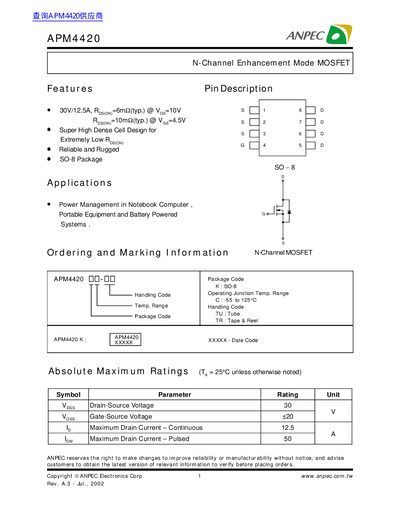

This datasheet provides the specifications of ANPEC APM4420 N-Channel Enhancement Mode MOSFET, including package type, pinout, maximum operating temperature, maximum operating voltage, maximum current, etc.
The document describes the ANPEC APM4420, an N-Channel Enhancement Mode MOSFET designed for power management in notebook computers, portable equipment, and battery-powered systems. Key features include a super high dense cell design for extremely low on-resistance and a reliable SO-8 package.
| Drain-Source Voltage (Vdss) | 30 V |
|---|---|
| Maximum Drain Current — Continuous | 12.5 A |
| Maximum Drain Current — Pulsed | 50 A |
| Package Type | SO-8 |
| Operating Junction Temp. Range | -55 to 125°C |
The maximum continuous drain current is 12.5 A.
The maximum junction temperature is 150 °C.
