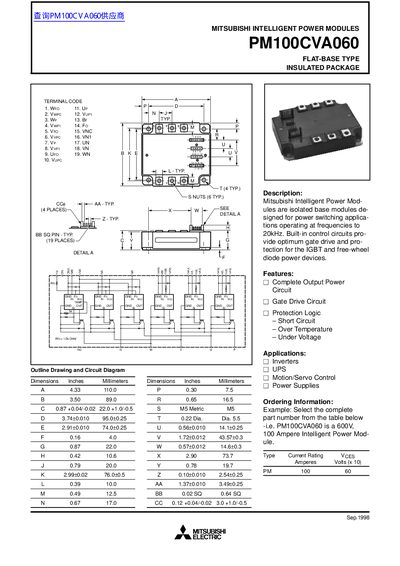

The Mitsubishi Electric PM100CVA060 is a 600V, 100 Ampere Intelligent Power Module. This module features a complete output power circuit, gate drive circuit and protection logic to prevent short circuit, over temperature and under voltage. It is suitable for inverters, UPS, motion/servo control and power supplies applications.
This document is a datasheet for the Mitsubishi PM100CVA060 Intelligent Power Module, an isolated base module designed for power switching applications operating at frequencies up to 20kHz. The module features built-in control circuits that provide optimum gate drive and protection for the IGBT and free-wheeling diode power devices.
| Operating Frequency | up to 20kHz |
|---|---|
| Collector Current | 100 Amperes |
| Collector-Emitter Voltage | 600 Volts |
| Module Weight | 560 Grams |
| Supply Voltage Protected by SC | 400 Volts |
| Isolation Voltage | 2500 Vrms |
| Short Circuit Trip Level | 158 Amperes |
| Over Temperature Protection Trip Level | 100 to 120 °C |
| Junction to Case Thermal Resistance | 0.37 °C/Watt |
The module is designed for use in inverters, UPS systems, motion/servo control, and power supplies.
The supply voltage applied between P-N terminals must be less than or equal to 400 Volts.
The input ON voltage applied between the gate and source terminals should be less than or equal to 0.8 Volts.
