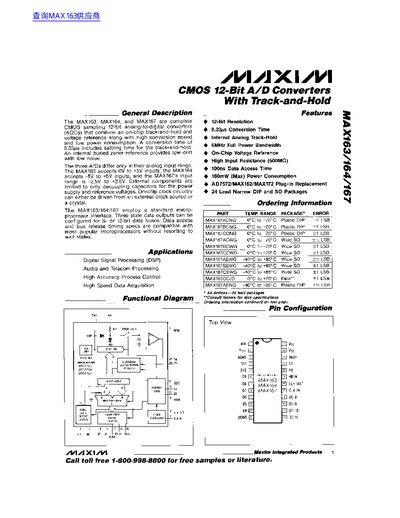

The MAX163, MAX164, and MAX167 are complete CMOS sampling 12-bit analog-to-digital converters (ADCs) that combine an on-chip track-and-hold and voltage reference. They offer a conversion time of 8.33us, which includes settling time for the track-and-hold. An internal buried zener reference provides low drift with low noise. The three devices differ only in their analog input range: the MAX163 accepts 0V to +5V inputs, the MAX164 accepts -5V to +5V inputs, and the MAX167's input range is -2.5V to +2.5V. External components are limited to decoupling capacitors for the power supply and reference voltages. On-chip clock circuitry can be driven from an external clock source or a crystal.
| Resolution | 12 Bits |
|---|---|
| Conversion Time | 8.33us |
| Clock Frequency | 16 MHz |
| Power Consumption | 180mW (Max) |
| Input Resistance | 500M |
| Data Access Time | 100ns |
| Full Power Bandwidth | 6MHz |
| Positive Supply Voltage | +5V |
| Negative Supply Voltage | -12V to -15V |
