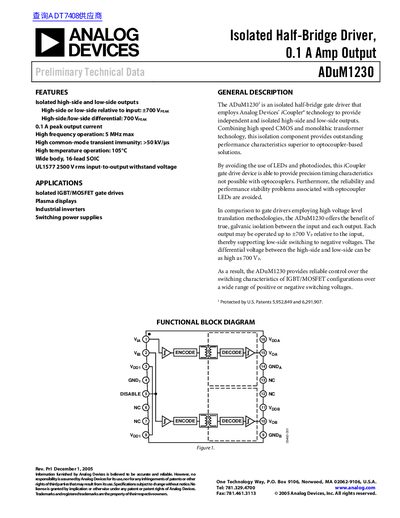

The ADuM1230 is an isolated half-bridge gate driver that features high-speed operation, high-temperature operation, and high common-mode transient immunity. This product employs Analog Devices' iCoupler® technology to provide independent and isolated high-side and low-side outputs.
The ADuM1230 is an isolated half-bridge gate driver that employs Analog Devices' iCoupler® technology to provide independent high-side and low-side outputs. It combines high-speed CMOS and monolithic transformer technology to offer superior performance compared to optocoupler-based solutions, providing precision timing and avoiding reliability issues associated with LEDs.
The device supports isolated IGBT/MOSFET gate drives for applications such as plasma displays, industrial inverters, and switching power supplies. Key features include a 0.1 A peak output current, high-frequency operation up to 5 MHz, and high common-mode transient immunity of greater than 50 kV/µs.
| Peak Output Current | 0.1 A |
|---|---|
| Maximum Switching Frequency | 5 MHz |
| Common-Mode Transient Immunity | >50 kV/µs |
| Maximum Operating Temperature | 105°C |
| Package Type | Wide body, 16-lead SOIC |
| Input-to-Output Withstand Voltage | 2500 V rms |
The device supports high-frequency operation up to a maximum of 5 MHz.
The ADuM1230 provides a peak output current of 0.1 A.
