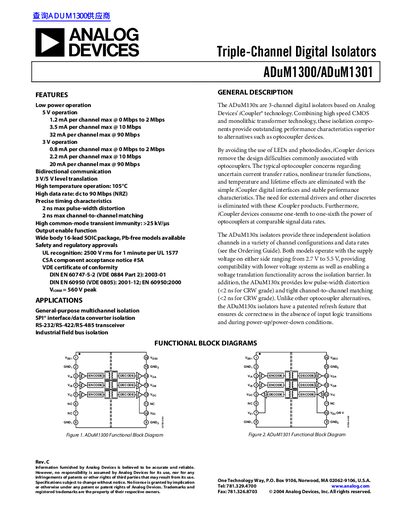

ADuM1300/ADuM1301 are low power triple channel digital isolators that support 3V/5V level translation and provide high temperature operation, high precision timing characteristics and high common mode transient immunity.
The ADuM1300 and ADuM1301 are triple-channel digital isolators based on Analog Devices iCoupler technology. They combine high-speed CMOS and monolithic transformer technology to provide isolation with superior performance compared to optocouplers. These devices feature low power operation, bidirectional communication, and precise timing characteristics, operating with supply voltages ranging from 2.7 V to 5.5 V.
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Maximum Data Rate | 90 Mbps |
| Pulse-Width Distortion | 2 ns max |
| Channel-to-Channel Matching | 2 ns max |
| Common-Mode Transient Immunity | >25 kV/ps |
| Operating Temperature | 105°C |
| Package Type | 16-lead SOIC |
The maximum data rate is up to 90 Mbps for the CRW grade.
The devices operate with supply voltages ranging from 2.7 V to 5.5 V.
Yes, the ADuM130x isolators support bidirectional communication.
