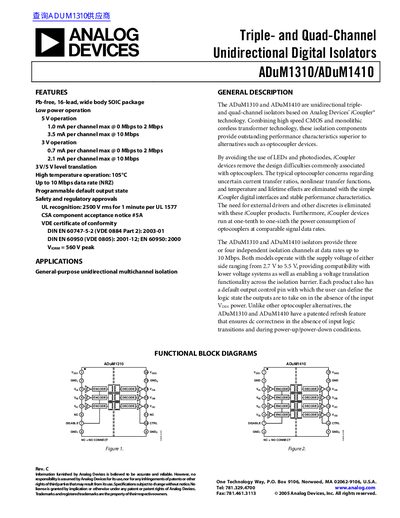

The ADuM1310/ADuM1410 are triple- and quad-channel unidirectional digital isolators that operate in either a 5 V or 3 V supply and provide up to 10 Mbps data rate.
The ADuM1310 and ADuM1410 are unidirectional triple- and quad-channel isolators based on Analog Devices' iCoupler technology. These devices combine high speed CMOS and monolithic coreless transformer technology to provide outstanding performance characteristics superior to optocoupler alternatives. They eliminate design difficulties associated with LEDs and photodiodes, such as uncertain current transfer ratios and nonlinear transfer functions.
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Operating Temperature | -40°C to +105°C |
| Package Type | 16-lead, wide body SOIC |
| Logic High Input Threshold | 2.0 V |
| Logic Low Input Threshold | 0.8 V |
Yes, they provide 3 V/5 V level translation with supply voltages ranging from 2.7 V to 5.5 V on either side.
The devices support high temperature operation up to 105°C.
