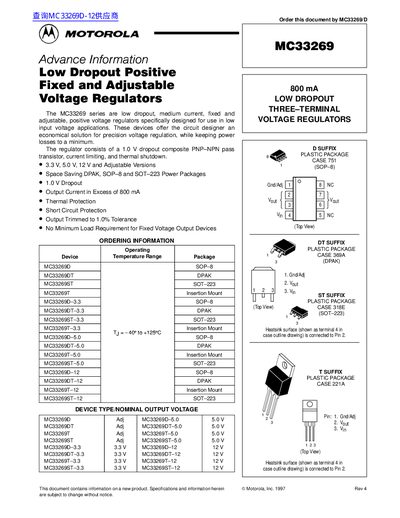

The MC33269 series are low dropout, medium current, fixed and adjustable, positive voltage regulators specifically designed for use in low input voltage applications.
The MC33269 series are low dropout, medium current, fixed and adjustable, positive voltage regulators specifically designed for use in low input voltage applications. These devices offer the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum. The regulator consists of a 1.0 V dropout composite PNP—NPN pass transistor, current limiting, and thermal shutdown.
| Output Current | 800 mA |
|---|---|
| Dropout Voltage | 1.0 V |
| Operating Junction Temperature Range | -40 to +150 °C |
| Line Regulation | 0.3 % |
| Load Regulation | 0.5 % |
| Ripple Rejection | 55 dB |
| Quiescent Current (Fixed Output) | 5.5 mA |
The dropout voltage is 1.0 V at 500 mA output current.
No, there is no minimum load requirement for fixed voltage output devices.
The maximum power supply input voltage rating is 20 V.
